FD1-Y

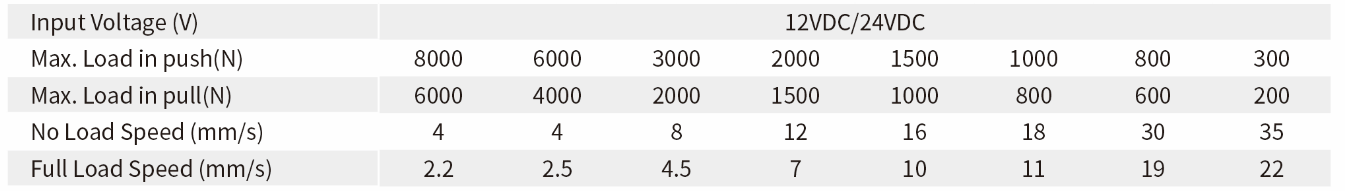

   Basic Parameter

• • Input Voltage (V):     12 / 24
  • Max. Load Capacity (N):     8000 / 6000
  • Max. Load in pull (N):     6000 / 4000
  • No Load Speed (mm/s):     4 ~40
  • Stroke Length-S (mm):     26mm ~ 1000mm (stroke could be customized )

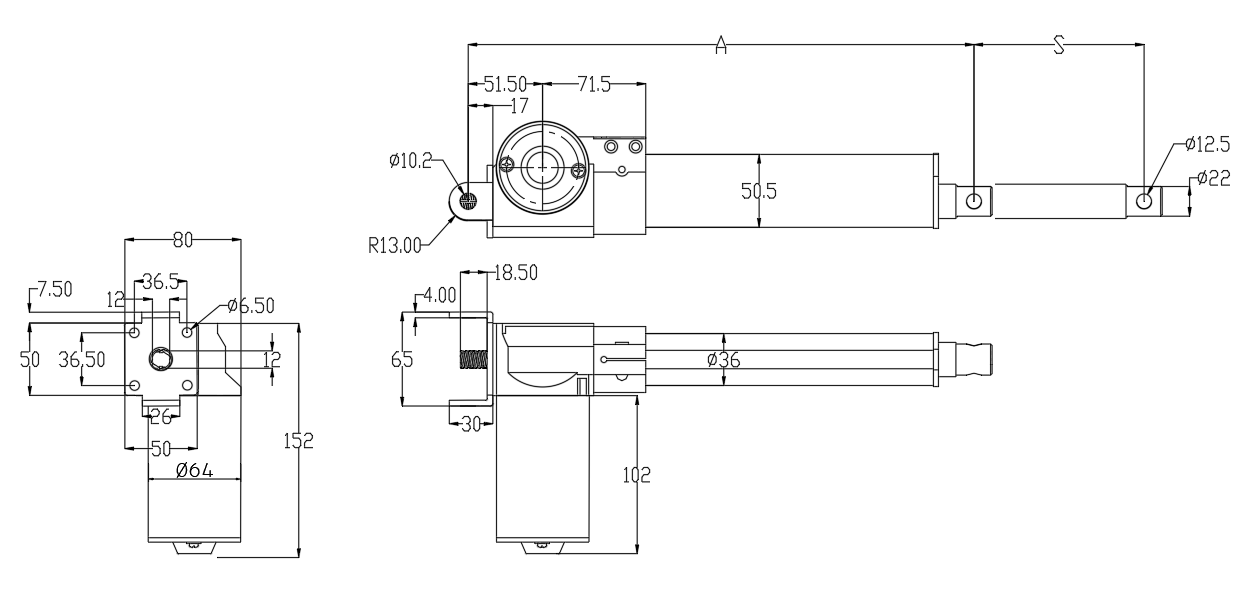

  • Installation Distance-A (mm):     Stroke + 160mm
  • Operating Temperature:     -20℃ ~ +40
  • Limit Switch:     Built-in, factory present
  • Duty Cycle:     10%, stop for 18 minutes after continuously working 2 minutes
  • Noise Level (dB):     ≤48dB
  • Material:     Aluminum Alloy, Plastic, Zink Alloy, Iron
  • Color:     Black/Grey
  • IP Degree:     IP44
  • Certificate:     CE
  • Function:     Hall Sensor (option), synchronization
