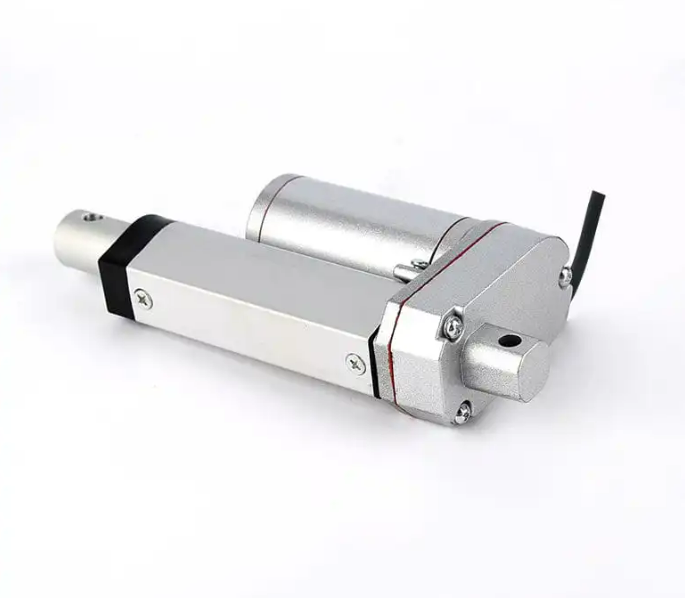

In modern industrial applications, precision and real-time feedback are critical to achieving optimal performance. The FD5 DW Position Feedback Linear Actuator is designed to meet these needs, offering highly accurate positioning with built-in feedback control. Ideal for robotics, automation, and material handling systems, this actuator ensures precise motion with continuous position monitoring, making it perfect for high-demand applications.
In this blog, we will dive into the features, advantages, and typical use cases for the FD5 DW actuator, and why it is an essential component in advanced automation systems.
⚙️ Key Features of the FD5 DW Position Feedback Linear Actuator
The FD5 DW actuator comes equipped with the following advanced features:
| Specification | FD5 DW Position Feedback Linear Actuator |
|---|---|
| Max Push Force | 1000 N |
| Max Pull Force | 1000 N |
| Stroke Length | 30–500 mm (customizable) |
| Speed | 5–20 mm/s |
| Noise Level | ≤50 dB |
| Voltage Options | 12V / 24V DC |
| Duty Cycle | 25% (2 min run / 6 min rest) |
| Position Feedback | Yes (built-in potentiometer) |
| Protection Rating | IP54 |
| Operating Temperature | –20℃ to +65℃ |
| Limit Switches | Yes (built-in) |
🔄 Position Feedback for Accurate Control
The standout feature of the FD5 DW actuator is its built-in position feedback system. Using a potentiometer, the actuator provides real-time data about its position, allowing for precise adjustments and ensuring that the actuator reaches the exact desired location with minimal error.
This feedback mechanism is crucial for applications that demand high precision and repeatability, such as in robotic systems, automated machinery, and CNC equipment. Continuous monitoring of position also improves the actuator’s reliability and efficiency in complex automation systems.
💪 High Force for Heavy-Duty Applications
The FD5 DW actuator delivers up to 1000 N of push/pull force, making it suitable for demanding tasks in industrial automation and robotics. Whether you’re moving large equipment, controlling machine components, or managing material handling systems, the FD5 DW actuator provides the high force needed to perform these tasks reliably.
🛡️ Built-in Limit Switches for Safety
The FD5 DW actuator features integrated limit switches, which help prevent over-travel and ensure that the actuator operates within a specified range. These switches are vital for protecting the actuator and the system from potential damage due to excessive travel. Additionally, they enhance the actuator’s overall safety and precision in automated systems.
🌐 IP54 Protection for Durability
The FD5 DW actuator is designed with an IP54 protection rating, which means it is resistant to dust and protected against water splashes. This makes the actuator suitable for use in various industrial environments, including factories, automated assembly lines, and outdoor settings with light exposure to moisture or debris.
🧠 Ideal Applications for the FD5 DW Position Feedback Linear Actuator
🤖 Robotics and Automation Systems
The FD5 DW actuator is perfect for robotic systems and automation equipment that require accurate and real-time feedback. Whether it’s for robotic arms, pick-and-place systems, or automated assembly lines, the actuator provides the precision needed for consistent, repeatable movements.
Example Applications:
- Robotic arms for precision tasks
- Automated assembly and packaging lines
- Material handling robots in factories
🏭 Industrial Machinery and Equipment
The FD5 DW actuator’s high force and position feedback make it ideal for industrial machinery that requires accurate movement and reliable performance. It is commonly used in CNC machines, positioning systems, and automated equipment for tasks like loading, unloading, and sorting materials.
Example Applications:
- Automated material handling and conveyor systems
- CNC machines for precision machining
- Automated robotic welding or assembly systems
🏠 Home Automation and Adjustable Furniture
The FD5 DW actuator’s low noise operation and precise feedback make it an excellent choice for home automation systems, such as adjustable furniture or motorized home devices. Whether you’re automating adjustable desks, smart curtains, or motorized windows, the FD5 DW actuator provides reliable and silent operation for a variety of smart home applications.
Example Applications:
- Adjustable height desks and tables
- Motorized blinds and curtains
- Home theater automation systems
🧑🔬 Medical Equipment
In medical applications, the FD5 DW actuator provides the precision and reliable positioning required for adjustable medical beds, examination tables, and surgical equipment. The position feedback system ensures that the actuator moves to the exact position every time, contributing to improved patient care and operational efficiency.
Example Applications:
- Adjustable hospital beds and stretchers
- Medical examination tables with height adjustments
- Surgical or diagnostic equipment requiring precise movement
🔎 Why Choose the FD5 DW Position Feedback Linear Actuator?
1️⃣ Real-Time Position Feedback
The position feedback feature of the FD5 DW actuator ensures that the actuator moves to the precise position required for each application, offering real-time feedback that enhances accuracy and repeatability.
2️⃣ High Force Capacity
With a maximum push/pull force of 1000 N, the FD5 DW actuator can handle demanding tasks while maintaining precise control, making it suitable for both light and heavy-duty applications in automation and robotics.
3️⃣ Safety Features
The actuator’s integrated limit switches protect the actuator and the system from over-travel, ensuring safety and long-term reliability.
4️⃣ Durability and Versatility
With an IP54 protection rating, the FD5 DW actuator is protected against dust and splashes, making it suitable for use in a wide range of environments, including industrial and outdoor applications.
📌 Conclusion
The FD5 DW Position Feedback Linear Actuator is a versatile, high-performance solution designed to provide precision motion control and real-time feedback for a wide range of applications. Whether you’re working with robotics, industrial automation, or medical equipment, the FD5 DW actuator ensures accurate, reliable, and efficient movement.
With its position feedback, high force capacity, safety features, and IP54 protection, the FD5 DW actuator is a robust choice for systems that require precision and repeatability in their operation.
