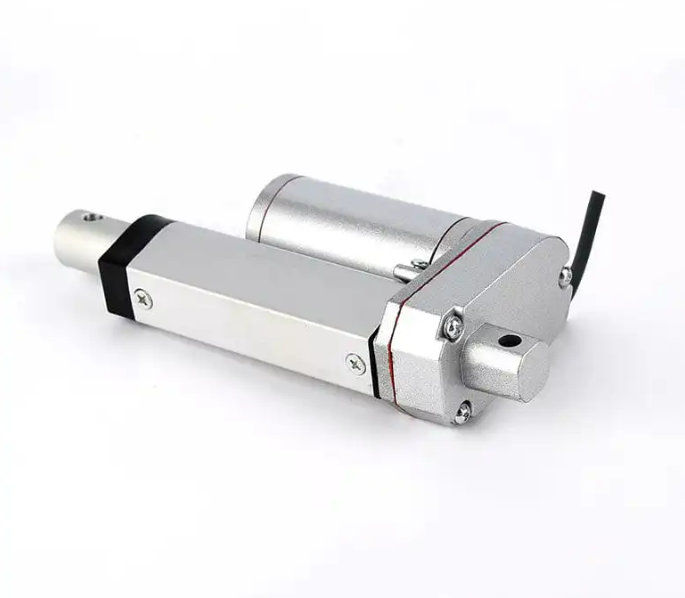

For systems that require precise motion control, the FD5 DW Position Feedback Linear Actuator is a powerful solution. With built-in position feedback, this actuator ensures accurate and reliable movement, making it ideal for applications in robotics, automation, and industrial machinery.
In this article, we will explore the key features, benefits, and applications of the FD5 DW linear actuator and explain why it’s the ideal choice for applications that demand both precision and feedback control.
⚙️ Key Features of the FD5 DW Position Feedback Linear Actuator
Here’s a closer look at the main features that make the FD5 DW Position Feedback Linear Actuator stand out in the market:
| Specification | FD5 DW Position Feedback Linear Actuator |
|---|---|
| Max Push Force | 1000 N |
| Max Pull Force | 1000 N |
| Stroke Length | 30–500 mm (customizable) |
| Speed | 5–20 mm/s |
| Noise Level | ≤50 dB |
| Voltage Options | 12V / 24V DC |
| Duty Cycle | 25% (2 min run / 6 min rest) |
| Position Feedback | Yes (built-in potentiometer) |
| Protection Rating | IP54 |
| Operating Temperature | –20℃ to +65℃ |
| Limit Switches | Yes (built-in) |
💡 Position Feedback for Precise Control
The FD5 DW actuator features position feedback using a built-in potentiometer, enabling the actuator to provide accurate and real-time position information. This makes it a perfect choice for applications that require precise positioning, such as robotics, automated machinery, and positioning systems.
The position feedback ensures that the actuator moves to the exact desired position, with continuous monitoring and adjustments. This is particularly useful in systems that require high repeatability and accuracy in their movements.
💪 High Force for Versatile Applications
The FD5 DW actuator can deliver up to 1000 N of push and pull force, making it ideal for tasks that require significant power while maintaining precise control. Whether it’s moving large machinery components or handling delicate operations in automation systems, the actuator ensures that you get the required force without sacrificing performance.
🔧 Integrated Limit Switches for Added Safety
The FD5 DW actuator comes with built-in limit switches, which prevent over-travel and ensure that the actuator doesn’t extend or retract beyond its intended range. These switches improve safety by preventing damage to both the actuator and the system in which it is used. The limit switches also ensure the actuator’s movements are controlled and repeatable.
🌐 IP54 Protection for Durability
With an IP54 protection rating, the FD5 DW actuator is protected against dust and water splashes, making it suitable for use in moderately harsh environments. Whether in factories, automated assembly lines, or outdoor applications, the actuator can withstand dust and splashing water, enhancing its reliability and operational lifespan.
🧠 Ideal Applications for the FD5 DW Position Feedback Linear Actuator
🤖 Robotics and Automation Systems
The FD5 DW actuator’s position feedback feature makes it an ideal choice for robotic systems and automation applications that require precise control. Whether it’s for robotic arms, assembly lines, or precision machinery, the actuator can move to specific positions with high accuracy, making it perfect for tasks requiring fine-tuned movements.
Example Applications:
- Robotic arms for material handling
- Automated assembly and sorting lines
- CNC machines and automated processing systems
🏭 Industrial Machinery and Equipment
In industrial environments, the FD5 DW actuator can be used to automate heavy-duty machinery and systems that require precise force control. From material handling systems to lifting equipment, this actuator can provide the necessary force and control to improve productivity and reduce manual labor.
Example Applications:
- Automated material handling and conveyor systems
- Industrial lifting equipment
- Automated loading and unloading systems
🏠 Smart Home and Furniture Systems
The FD5 DW actuator’s position feedback and low noise operation make it an ideal choice for smart home automation and adjustable furniture systems. Whether used in motorized beds, adjustable desks, or smart curtains, this actuator provides the required precision and reliable performance.
Example Applications:
- Adjustable height desks and tables
- Motorized beds and recliners
- Smart curtains and blinds for home automation
🧑🔬 Medical Equipment
In medical devices, the FD5 DW actuator ensures that positioning systems are accurate and reliable. From adjustable patient beds to surgical equipment, the actuator ensures smooth and precise adjustments, contributing to patient comfort and operational efficiency in medical environments.
Example Applications:
- Adjustable hospital beds
- Medical examination tables
- Medical diagnostic equipment requiring accurate motion
🔎 Why Choose the FD5 DW Position Feedback Linear Actuator?
1️⃣ Precise Positioning with Built-In Feedback
The position feedback feature ensures that the actuator delivers precise positioning in real time, making it ideal for high-accuracy tasks such as robotics, automation, and positioning systems.
2️⃣ High Force and Durability
With a force capacity of 1000 N and an IP54 rating, the FD5 DW actuator is built to perform in demanding environments while providing the necessary force output for various applications.
3️⃣ Safety Features with Limit Switches
The built-in limit switches add an extra layer of safety, preventing over-travel and protecting both the actuator and the system it’s integrated into.
4️⃣ Versatility for a Wide Range of Applications
From industrial machinery to smart home systems, the FD5 DW actuator is suitable for a variety of applications that require precise control, reliable feedback, and smooth operation.
📌 Conclusion
The FD5 DW Position Feedback Linear Actuator is a powerful solution for applications requiring precise motion control and feedback systems. With its position feedback, high force capacity, built-in limit switches, and IP54 protection, the FD5 DW actuator is a versatile and reliable choice for industries ranging from robotics to industrial automation and medical equipment.
Whether you’re automating industrial machinery, enhancing smart home systems, or creating precision robotics, the FD5 DW actuator ensures that your system operates efficiently and with the highest degree of accuracy.
