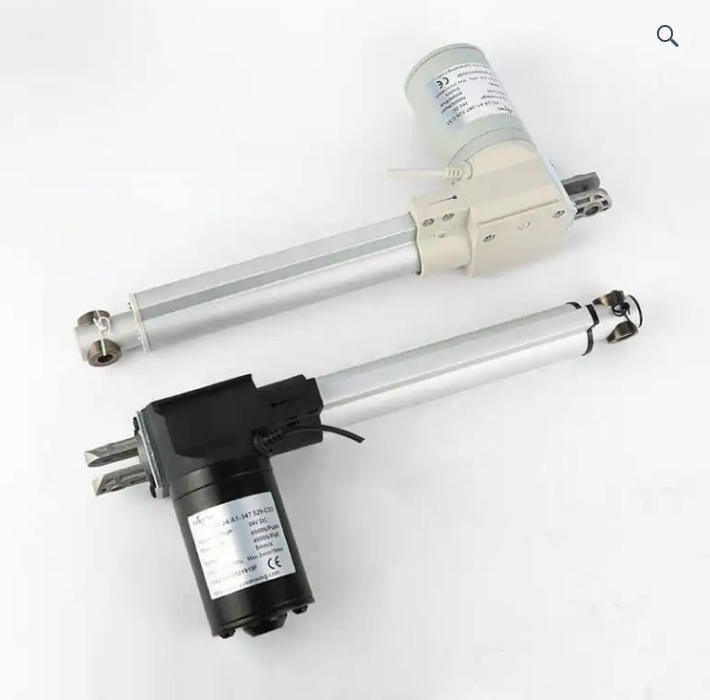

The FD1-8000N linear actuator from Sanxing is a heavy duty electric linear actuator engineered to deliver exceptional performance in demanding environments. With a maximum push force of 8000 N and a pull capacity of 6000 N, this robust actuator is suitable for industrial automation, automated machinery, medical equipment, furniture systems, and high-load motion control applications.
At its core, the FD1-8000N actuator is driven by a high-quality DC motor with built-in limit switches, providing precise end-of-stroke control and reliable repeatability. The actuator supports a customizable stroke range from approximately 26 mm up to 1000 mm, allowing integration into a wide range of mechanical designs and installation configurations.
The FD1-8000N delivers smooth motion with noise levels ≤ 48 dB, making it suitable for environments where quiet operation is essential, such as commercial furniture actuation, medical beds, and adjustable workplace systems. Its modular design and optional hall sensor or synchronization support enable seamless integration into sophisticated automation systems.
With rugged construction using aluminum alloy, zinc alloy, and reinforced components, this actuator balances durability with lightweight design, ensuring long service life even under repeated load cycles. The built-in safety limit switches prevent over-travel and help protect connected equipment against mechanical stress and strain.
Typical applications include:
- Automated industrial machinery and lifting systems
- Heavy adjustable furniture, hospital beds, and dental chairs
- Factory automation and material handling equipment
- Robotics and high-force motion control subsystems
The FD1-8000N linear actuator is ideal for engineers and OEM integrators who require a high-force, reliable, and customizable electric actuation solution built to perform in heavy-load and industrial use cases. Its flexible specification options and strong performance characteristics make it a versatile choice for demanding projects.
