6000N IP65 electric linear actuator | FD15 Heavy Duty Actuator motor
6000N IP65 electric linear actuator represented by the FD15 model is a heavy-duty, high-protection telescopic drive designed for industrial, agricultural and outdoor automation scenarios requiring both 6000N peak thrust and IP65 dust and water resistance. Unlike ordinary low-IP actuators that are easily damaged by moisture and dust, 6000N IP65 electric linear actuator features a fully sealed aluminum alloy housing and optimized internal sealing structure, making it suitable for use in damp, dusty and splash-prone environments. With four graded load and speed combinations, built-in limit switches and optional synchronization function, 6000N IP65 electric linear actuator is widely used in heavy-duty hospital beds, outdoor agricultural equipment, industrial lifting platforms and commercial automation systems. As a versatile high-thrust actuator, 6000N IP65 electric linear actuator has become a preferred choice for equipment manufacturers seeking both heavy load capacity and reliable environmental adaptability.
In the heavy-duty linear actuator market, balancing high thrust with environmental protection is a common challenge. Many 6000N actuators on the market have only basic IP54 protection, limiting their use to clean indoor environments. 6000N IP65 electric linear actuator solves this problem by upgrading the sealing design to IP65, which allows it to withstand direct water splashes and prevent dust from entering the internal components. The FD15 series of 6000N IP65 electric linear actuator also offers optional synchronization control, making it ideal for multi-actuator systems such as heavy hospital beds and large lifting platforms. Whether used indoors in humid medical environments or outdoors in dusty farm settings, 6000N IP65 electric linear actuator delivers consistent performance and long service life.
Core Technical Specifications of FD15 6000N IP65 electric linear actuator
The FD15 model is optimized around the core positioning of 6000N IP65 electric linear actuator, focusing on heavy load capacity, environmental protection and synchronization capability:
表格
| Parameter | Specification |
|---|---|
| Input Voltage | 12VDC / 24VDC dual voltage compatible |
| Max. Push Load | 6000N / 3000N / 2000N / 1500N (four grades) |
| Max. Pull Load | 4000N / 2000N / 1500N / 1000N |
| No-Load Speed | 4 / 8 / 12 / 16 mm/s (graded speed) |
| Full-Load Speed | 3 / 6 / 10.5 / 12 mm/s |
| Stroke Length | 30mm ~ 1000mm (customizable) |
| Min. Installation Distance | Stroke + 160mm |
| Operating Temperature | -20℃ ~ +40℃ |
| Limit Switch | Built-in, factory pre-set |
| Duty Cycle | 10% (2min on / 18min off) |
| Noise Level | ≤48dB |
| Material | Aluminum Alloy, Plastic, Iron |
| Color | Black / Grey |
| IP Degree | IP65 |
| Certification | CE |
| Optional Function | Synchronization |
The multi-grade load and speed design allows users to select the most suitable configuration for their specific application, avoiding unnecessary performance waste. The IP65 rating is the core advantage of 6000N IP65 electric linear actuator, making it suitable for environments where IP54 actuators cannot operate reliably.

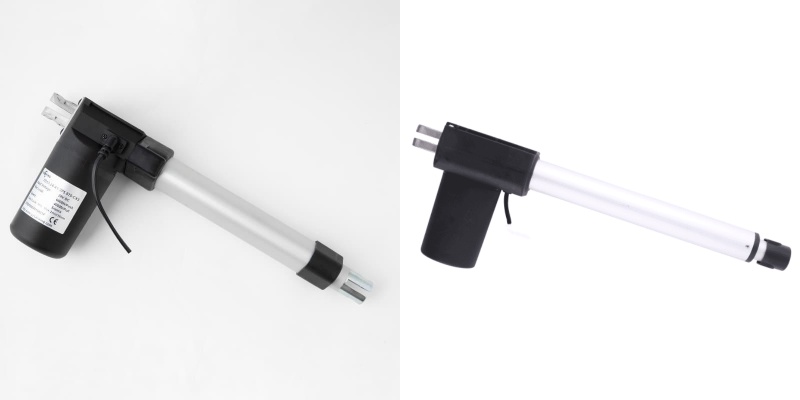

FD15 vs FD13 Linear Actuator: Key Differences
The FD15 and FD13 are both heavy-duty linear actuators with similar thrust ranges, but they differ significantly in appearance and protection level. The most important distinction is:
- Protection Level: FD15 features IP65 rating, while FD13 has IP66 rating. This means FD13 offers superior protection against water jets and dust, while FD15 is more suitable for environments with splashes and moderate dust.
- Appearance: The FD15 has a more compact, streamlined housing with a distinct black/grey color scheme, while the FD13 has a bulkier motor housing. The different shapes are optimized for different installation scenarios, with FD15 fitting better in tight spaces and FD13 offering more robust sealing for extreme environments.
- Synchronization Function: Both models offer optional synchronization, but the FD15’s design makes it slightly easier to integrate into multi-actuator systems due to its standardized mounting dimensions.
For users choosing between the two, FD15 is ideal for applications requiring IP65 protection (e.g., indoor medical beds, agricultural equipment), while FD13 is better suited for environments needing IP66 (e.g., outdoor equipment, wet industrial settings).
Core Applications of 6000N IP65 electric linear actuator
1. Heavy-Duty Hospital and Nursing Beds
6000N IP65 electric linear actuator is widely used in heavy-duty hospital beds and nursing home beds. The 6000N peak thrust easily handles the weight of patients and bed frames, while the IP65 rating allows regular cleaning and disinfection. The optional synchronization function ensures smooth, even lifting when multiple actuators are used together, preventing bed tilting. As a heavy duty synchronized linear drive, it meets the strict hygiene and safety requirements of medical environments.
2. Agricultural Greenhouse and Farm Equipment
Outdoor agricultural equipment such as greenhouse skylights, ventilation shutters and irrigation baffles operate in dusty, humid environments, making 6000N IP65 electric linear actuator an ideal choice. The IP65 rating protects against rain and dust, while the 6000N thrust can handle large, heavy shutters. The low-noise operation ensures no disturbance in farm settings, and the wide temperature range adapts to varying weather conditions.
3. Industrial Lifting Platforms and Fixtures
Light industrial lifting platforms, assembly line fixtures and heavy equipment adjustment mechanisms require both high thrust and reliable performance. 6000N IP65 electric linear actuator provides the power needed for heavy lifting, while the IP65 rating resists workshop dust and splashes. The optional synchronization function allows multiple actuators to work together for stable platform lifting, improving efficiency and safety.
4. Outdoor Commercial and Public Facilities
Outdoor public facilities such as automatic gates, advertising display adjustment mechanisms and outdoor stage equipment use 6000N IP65 electric linear actuator. The IP65 rating protects against weather conditions, and the 6000N thrust can handle large, heavy structures. The durable aluminum alloy housing resists corrosion, ensuring long service life in outdoor environments.
5. Rehabilitation and Physiotherapy Equipment
Professional rehabilitation equipment such as therapy beds, stretching machines and posture correction devices use 6000N IP65 electric linear actuator. The smooth, controlled movement is ideal for patient safety, while the IP65 rating allows easy cleaning and disinfection. The low-noise operation creates a calm environment for therapy sessions.
Working Principle of 6000N IP65 electric linear actuator
To understand the reliability of 6000N IP65 electric linear actuator, it is important to know how it works. The actuator converts electrical energy into linear motion through a DC motor, gear set and lead screw mechanism. The motor’s rotational force is transferred through the gears to the lead screw, which then drives the telescopic rod in and out. The built-in limit switches stop the motor when the actuator reaches its maximum or minimum stroke, preventing damage.
The IP65 rating is achieved through multiple layers of sealing around the motor, gearbox and telescopic rod. This prevents water and dust from entering the internal components, ensuring the actuator operates reliably even in harsh environments. As noted by Automation World, the combination of heavy thrust and high protection makes 6000N IP65 electric linear actuator a versatile solution for challenging applications.
Why Choose 6000N IP65 electric linear actuator Over Competitors?
1. Balanced Thrust and Environmental Protection
Unlike many competitors that sacrifice protection for thrust or vice versa, 6000N IP65 electric linear actuator delivers both 6000N peak thrust and IP65 protection. This makes it suitable for a wider range of applications, from indoor medical beds to outdoor agricultural equipment.
2. Optional Synchronization Function
The optional synchronization function allows multiple 6000N IP65 electric linear actuator to work together, ensuring even lifting and movement. This is a key advantage for applications requiring coordinated motion, such as heavy beds and large platforms.
3. Durable Construction
The combination of aluminum alloy, plastic and iron materials ensures the actuator is both lightweight and durable. The IP65 rating protects against environmental damage, while the reinforced gear set handles heavy loads without wear.
4. Low Noise Operation
At ≤48dB, 6000N IP65 electric linear actuator operates quietly, making it suitable for use in medical facilities, homes and public spaces where noise is a concern.
5. Customizable Options
With customizable stroke lengths and four load/speed grades, 6000N IP65 electric linear actuator can be tailored to meet the specific needs of any application. This flexibility makes it a cost-effective choice for equipment manufacturers.
Installation and Maintenance Guidelines
To ensure the long-term performance of 6000N IP65 electric linear actuator, follow these guidelines:
- Mounting: Install the actuator on a flat, rigid surface to avoid lateral forces, which can damage the gears and reduce efficiency.
- Power Supply: Use a stable 12V or 24V DC power supply to ensure consistent operation.
- IP65 Care: While the actuator is splash-proof, avoid prolonged immersion in water. Clean the housing regularly with a damp cloth.
- Duty Cycle: Adhere to the 10% duty cycle to prevent motor overheating.
- Synchronization Setup: If using multiple actuators, calibrate the synchronization controller to ensure even movement.
As a IP65 waterproof telescopic actuator, the FD15 requires minimal maintenance, making it ideal for applications where regular upkeep is difficult.
Conclusion
6000N IP65 electric linear actuator (FD15) is a high-performance heavy-duty actuator that combines 6000N peak thrust with IP65 environmental protection. Its versatile design makes it suitable for a wide range of applications, from medical beds to outdoor agricultural equipment. When compared to the FD13 model, the FD15 offers a slightly lower IP rating (IP65 vs IP66) but a more compact appearance that fits better in tight spaces.
With optional synchronization, low noise operation and customizable stroke lengths, 6000N IP65 electric linear actuator provides a reliable, cost-effective solution for any heavy-duty linear motion need. Whether you are designing a medical bed, agricultural equipment or industrial platform, the FD15 is a robust choice that delivers consistent performance in challenging environments.
